Thermoplastic Vibrating Line Marking Paint

Update time：Oct-27-2020

Thermoplastic Vibrating Line Marking Paint Featured Image

Short Description:

We are China's largest professional manufacturer and factory of the thermoplastic vibrating line-marking paint. vibrating thermoplastic road marking paint consists of thermoplastic resin, modified rubber, fillers, and special materials and other substances. It is developed on the basis of pursuing high visibility and vibration. It is widely applied to the center lines of roads (overtaking-prohibited lines), edge lines of highway, crossing slowdown lines, and so on.


video

3 Levels of Thermo to ft your budget


Specification of this Thermoplastic Vibrating Line Marking Paint Manufacturer


Vibrating thermoplastic road marking paint consists of thermoplastic resin, modified rubber, fillers, and special materials and other substances. It is developed on the basis of pursuing high visibility and vibration. It is widely applied to the centre lines of roads (overtaking-prohibited lines), edge lines of highway, crossing slowdown lines and so on.


Rainy night reflections: excellent visibility benefits from the unique formulation. Even on rainy night, we can get superior reflective effect.

Pressing line vibration: when the vehicle is driven to get over the line-marking, it makes vehicle slight vibration to shake the driver to pay attention to safety.


Test report of vibrating paint

Test item Technical requirements Test value Conclusion
Density(g/cm³） 1.8~2.3 1.94 Qualified
softening point ≥100 118 Qualified
drying time ≤3 3 Qualified
film appearance

No wrinkle,spot,blister,crack,off,Glued tyres

,the colour of fill appearance should be closed to standard

 Meet the requirement Qualified
colorimetric Characteristics luminance factor(white) ≥0.75 Meet the requirement Qualified
luminance factor(yellow) ≥0.45 Meet the requirement Qualified
Compression strength 23℃±1℃  ≥12 22.9 Qualified
50℃±2℃  ≥2 7.6 Qualified
water resistence There's no abnormal phenomena 24 hours after being Soaked in the water Meet the requirement Qualified
alkali resistance

There’s no abnormal phenomena 24 hours after being

 Soaked in the Saturated calcium chloride solution

 Meet the requirement Qualified
Glass bead content 18~25 22.8 Qualified
The coating crack resistance at low temperature

Keep 4h in ten degrees below zero,then keep 4h in indoor temperature.

 After repeating three times, there’s no crack

 Meet the requirement Qualified
 thermal stability

Keep 4h in between 200℃ to 220℃ when stiring

,there's no obvious phenomenon of yellowing,coking,caking etc.

 Meet the requirement Qualified




Features of vibrating paint
Excellent molding effect and strong pressure resistance:

The high intensity resin is matched with superior pigments, fillers,heat resistant agents, leveling agents,

solidifying agents and other imported auxiliary agents,

 making the convex bump molding effect excellent when construction.

The marking line has strong abrasion and shock resistant ability,

ensuring itself not chip off-falling and deform.
Bright color and high weather resistant ability:

The imported rutile titanium dioxide(white) or heat resistant

chrome yellow(yellow) is matched with excellent pigments and ultravioresistant auxiliary agents.

 The marking line has the characteristics of acid resisting, alkaline resisting,

antifouling,bight,highly weather resistant, etc.
Fast drying:

When the temperature is 20℃, and the relative humidity is 40%,

 the marking line surface drying time is no more than 3minutes,

and the construction has little pollution to environment.
Construction condition

The suitable temperature for the paint construction is 180-220℃.

The suitable construction environment temperature is 5-40℃,

 and the relevant humidity is less than 70%.

When there is excessive difference for humidity and temperature

, the paint construction temperature or speed can be adjusted properly.

 The road should be kept clean and dry when construction.

Special primer produced by our company can be used on cement and asphalt road surface.
Paint amount to be used

Bump convex marking machine mainly has square, strip,

dot form and other patterns. Different quantity of paint will be used for different patterns.

To take comparatively universal square line marking machine for example,

 when 5×4.5×12.5px bump and the intervals corresponds to twice of that pattern area,

5kg paint will be used for each squaremeter.

For other pattern or different area or different intervals,

the quantity can be calculated reckoning as per specific situation.

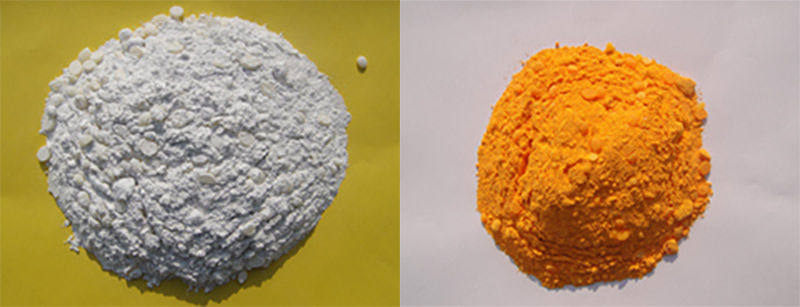

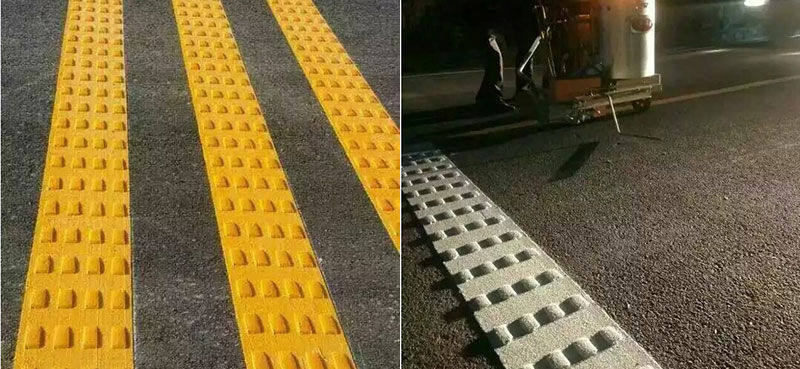

Pictures of this China Thermoplastic Vibrating Line Marking Paint




Our Pictures of this Thermoplastic Vibrating Line Marking Paint Factory

Looking forward to your inquiry for this Thermoplastic Vibrating Line Marking Paint Manufacturer
