LXD860 Ride On Type Thermoplastic Road Marking Machine

Update time：Oct-27-2020

LXD860 Ride On Type Thermoplastic Road Marking Machine Featured Image

Short Description:

We are China's largest professional manufacturer of ride-on type thermoplastic road marking machines. The paint tank has a double layer of stainless steel, which can keep warm and insulate against heat, it can help save energy and avoid form scalding. The machine has the advantage of high efficiency, high quality, easy to operate, and convenient for maintenance.


video

3 Levels of Thermo to ft your budget



Specification of this Ride On Type Thermoplastic Road Marking Machines Manufacturer





Specification
Thermoplastic road marking machine is the key equipment used in thermoplastic road marking construction,

it need to work together with thermoplastic preheater.

The marking shoe is made of high-precision cast iron,

which can make the road line orderliness,uniform thickness and more beautiful.

The grounded knife of marking shoe can adapt to different kinds of road.

The glass beads dispenser can dispense glass beads automatically.

The paint tank has double layer of stainless steel,

which can keep warm and insulate against heat,it can help save energy and avoid form scalding.

The machine has advantage of high efficiency,high quality,easy to operate and convenient for maintenance.

If you have a lot of work,you can connect it with our boost vehicle,

which can help you save workforce and improve efficiency.
Working speed 16km/h(move forward)
10kn/h(move backward)
Color Yellow
Engine Honda 5.5P
Gradeability ≤ 60 degree
Marking equipment high-precision integrated marking shoe,screeding type,standard configuration: 150mm
Grounded blade inlaid hard alloy,and also have pure alloyed grounded blade for your choice
Paint container capacity 100kg(4 bags thermoplastic paint)
Paint container double layer stainless steel,equipped with inserted dismountable manumotive stirring device

,the container is removable & interchangeable for quick color changes
Glass beads container capacity 10kg
Glass beads container Automatic spreader
Glass beads dispenser 100/150/200/250/300/400/450mm(optional)
Line thickness 1.0-3.0mm(adjustable)
Line marking width 50/100/150/200/250/300/400/450mm(optional)
Heating temperature 180~210℃
Heating Mode Liquefied petroleum gas heating
Gas tank 15kg
wheel High temperature resistance soft rubber,rear wheel equipped with localiser to make the machine walk along the straight line
Machine Weight 206kg
Dimension 2650×850×1030mm



Please note if you also need other size marking shoe,please tell us.

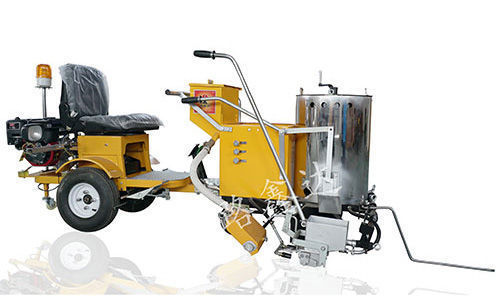

Pictures of this China Ride On Type Thermoplastic Road Marking Machines

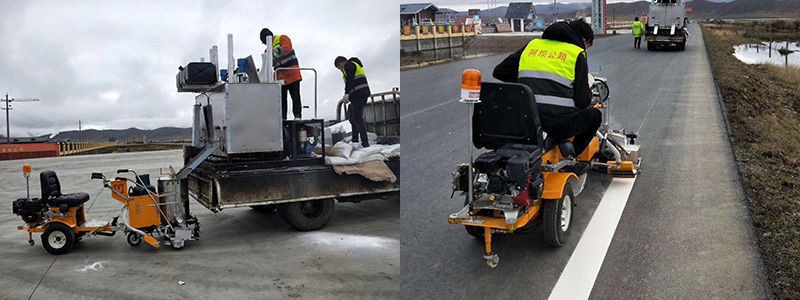

Our Pictures of this Ride On Type Thermoplastic Road Marking Machines Factory

Looking forward to your inquiry for this Ride On Type Thermoplastic Road Marking Machines Manufacturer
