Specification of this Sitting Driving Type Cold Plastic Road Marking Machines Manufacturer

Engine :Kubota V1505, 30 HP (22 kW)

Fuel :diesel, capacity 34 liter

Electrical system :12 V, battery 66 Ah

Steering :strong standard mechanical steering

Drive / brake system :hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake

Wheels :front: 6.00-9 12PR, 5 hole-rim / rear: 6.00-9 12PR, 5

hole-rim

Compressor :2-cylinder Boge compressor Typ SK 26, effective air supply 1060 l/min, mechanically driven by poly-v-belt

Operating air pressure :7 bar, silenced safety valve

Paint pressure tank :385 ltr., with agitator, other container capacities on

request

Mixing-system :98 : 2, fluid or powder, static mixer on request

Marker unit :screed box for solid line

Additional equipment :on request, agglomerate and profile

Glass bead equipment :on request, metering bead dispenser up to 300 mm

Empty- / total weight :approx. 1300 kg / 2300 kg

Dimensions Length x width x height :approx. 3,90 m x 1,25 m x 1,85 m (without equipment)

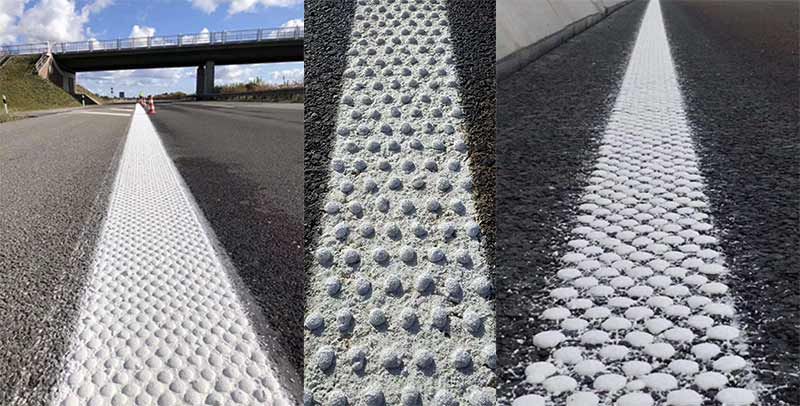

Pictures of this China Sitting Driving Type Cold Plastic Road Marking Machines

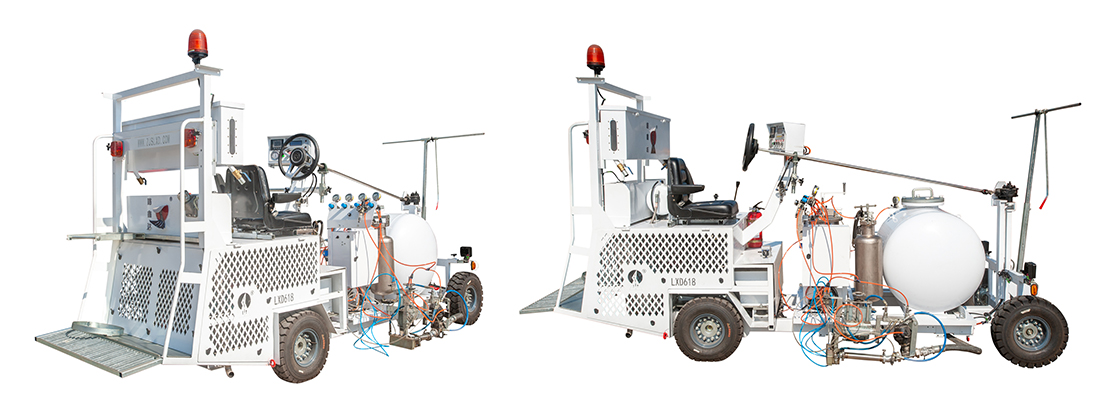

Our Pictures of this Sitting Driving Type Cold Plastic Road Marking Machines Factory

Looking forward to your inquiry for this Sitting Driving Type Cold Plastic Road Marking Machine Manufacturer
