LXD-660 Multi functional extrusion type driving road marking machine

Update time：Sep-30-2024

LXD-660 Multi functional extrusion type driving road marking machine Featured Image

Short Description:

Fast construction speed and high efficiency• Belonging to larger construction equipment, reducing casualties caused by traffic accidents during the construction process


video

3 Levels of Thermo to ft your budget

Main Features

•  Fast construction speed and high efficiency

•  Belonging to larger construction equipment, reducing casualties caused by traffic accidents during the construction process

•  Long maintenance free cycle, durable and long-lasting

•  Extrusion construction process, precise control of coating dosage, avoiding unnecessary consumption

•  User friendly and easy to use (cruise control, computer system, etc.)

•  The operation and construction methods are quickly converted, and the marking equipment can be installed from one side to the other in half an hour

•  Minimal maintenance (high-quality components), and easy and convenient maintenance

• Customizable marking equipment according to customer needs

QQ图片20240930144609

Basic Technical Parameter

engine Kubota diesel engine 72kw
steer Steering by operating the cylinder through the steering wheel
Walking Drive Braking System (Danvers) Hydrostatic simultaneous service brake and hydraulic driven multi disc brake as parking brake
Working speed 3-8 km/h
Line thickness Among 1.5~3.0mm，Construction can be carried out on roads with high roughness, such as slurry sealed surfaces
conputer Full touch screen panel, computer-controlled construction with precise control, capable of non-stop line changes
Cruise Cruise control construction mode with uniform and stable marking quality
Glass beads tank Pressure glass bead jar, capable of spreading double beads of different specifications
Spray gun system Equipped with C6 spray gun water line system, it can achieve simultaneous marking and water line drawing
Line type Multiple drainage structure markings, such as fishbones, pork ribs, chessboards, stair treads, etc
Comes with hot melt kettle function Comes with a 1 ton hot melt kettle, with circulating heat transfer oil for precise insulation and temperature control
Construction technology Extrusion construction technology reduces mechanical wear and extends equipment lifespan
Optional Supporting equipment such as sunshade canopy, cruise control, quick side changing, pressurized glass bead double scattering system, automatic water line system, etc
Paint tank capacity 1 T
Dimensions (length, width, height) 6.7*2.4*2.5m
Total weight 6.7 T

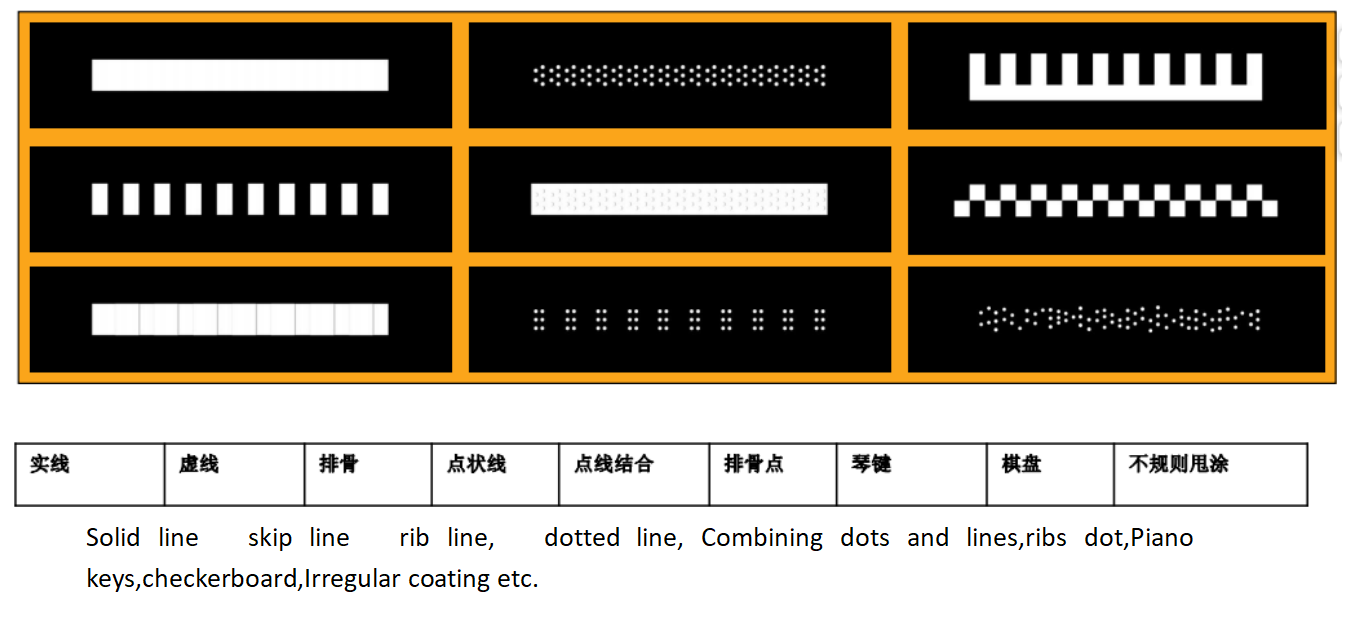

Multiple Line Types Available (up to 99)

QQ图片20240930145014

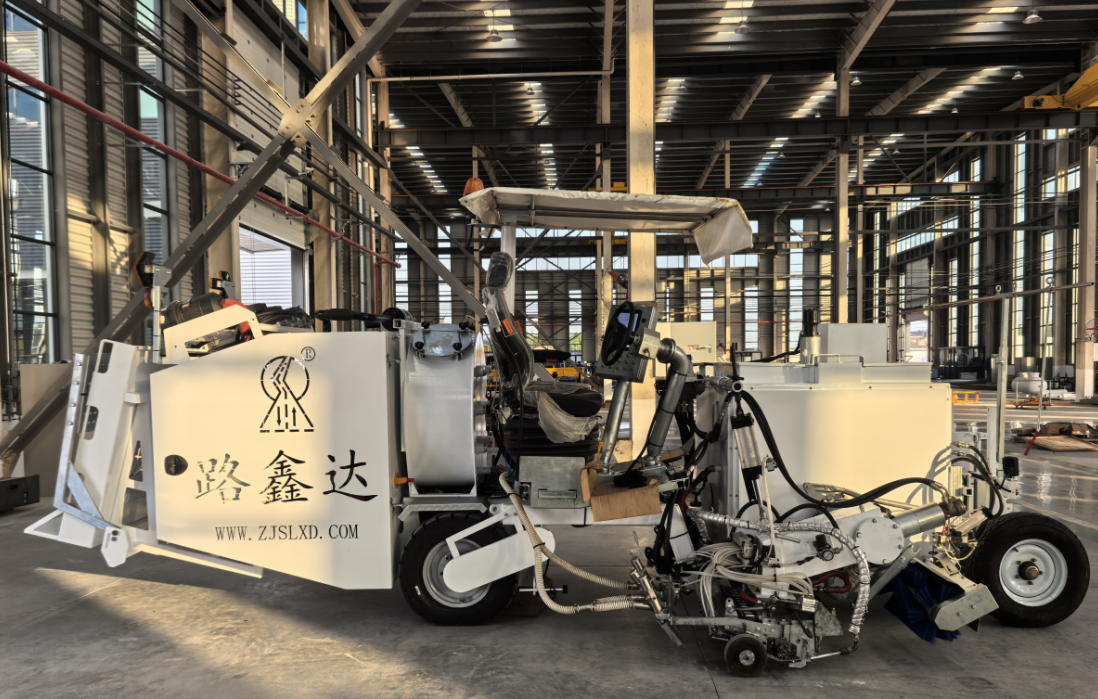

QQ图片20240930145111
