Two Component Rib Line Road Marking Machine

Update time：Oct-27-2020

Two Component Rib Line Road Marking Machine Featured Image

Short Description:

We are China's largest professional manufacturer and factory of the two-component rib line road marking machines. Rubber tire: iron wheels，Heat-resisting rubber, The rear tail wheel is equipped with a positioner, to make it move in a straight line. Main Configuration: 1 travel driving unit-USA2 Solenoid valve-Italy3 Air compressor-Taiwan4 modulator-Germany5 Air cylinder-Italy


video

3 Levels of Thermo to ft your budget


Specification of this Two Component Rib Line Road Marking Machine Manufacturer


Two component rib line road marking machine
Engine Honda gasoline engine，air-cooled engine Power:5.5HP
Driving method  Automatic oil pressure stepless transmission
Working speed 10-15m/min
Maximum Gradeability 15°
Line thickness Flat line：0-3.5mm rib line： height:6.5mm（0-10mm adjustable）
Bump length can be adjusted by CPU intelligent control program
Marking shoe pneumatic open and close,pneumatic moulding
Paint tank capacity 60kg*2
Double glass beads dispenser  Automatic synchronous clutch broadcast capacity:25kg*2
Rubber tire iron wheels，Heat-resisting rubber，The rear tail wheel is equipped with a positioner，to make it move in a straight line
Line width 150/200/300/400/450mm（optional）
Size 1300*1000*1170mm
Weight 296kg
Main Configuration：1 travel driving unit-USA2 Solenoid valve-Italy3 Air compressor-Taiwan4 modulator-Germany5 Air cylinder-Italy

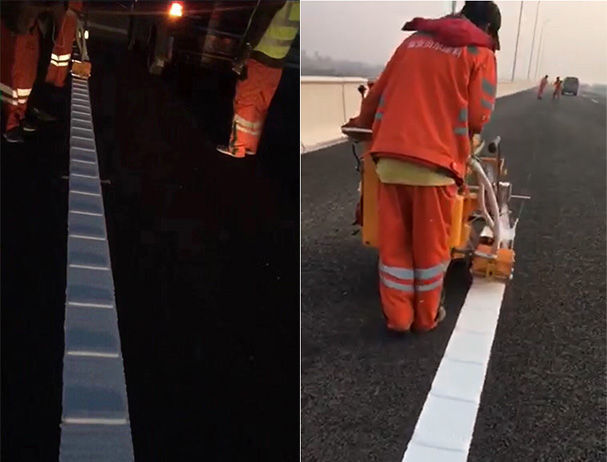

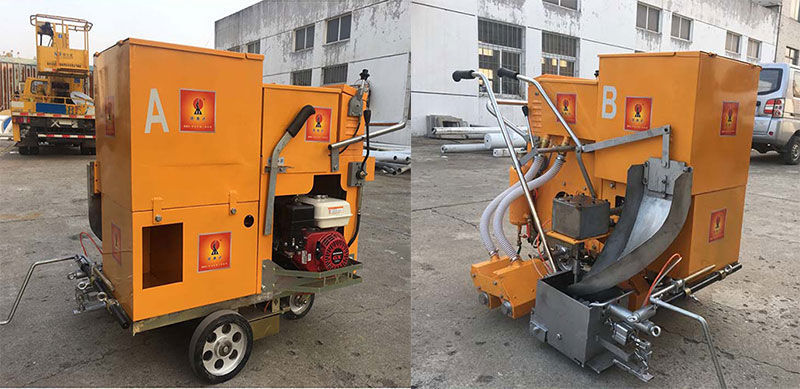

Pictures of this China Two Component Rib Line Road Marking Machine


Our Pictures of this Two Component Rib Line Road Marking Machine Factory

Looking forward to your inquiry for this Two Component Rib Line Road Marking Machine Manufacturer
