Two Component Road Marking Machine For Flat Line, Profile Line And Agglomerate Line

Update time：Oct-27-2020

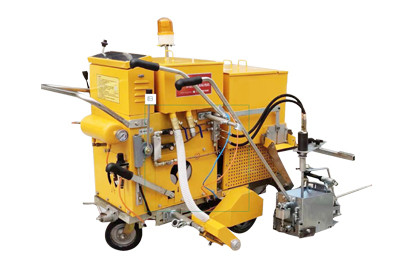

Two Component Road Marking Machine For Flat Line, Profile Line And Agglomerate Line Featured Image

Short Description:

We are China’s largest professional manufacturer and factory of the two-component road marking machine for a flat line. Rubber tire：iron wheel，Heat resistant rubber tailor-made，The rear tail wheel is provided with a locator，keep the machine moving in a straight line.


video

3 Levels of Thermo to ft your budget

Specification of this Two Component Agglomerate Line Marking Machine Manufacturer





Technical parameter

Engine: Honda gasoline engine,OHV Four-stroke air-cooled

Power：5.5HP

Driving ,ethod：Automatic oil pressure infinitely variable speed

Working speed：5m/min

maximum gradeability：15°

Line thickness：1.5-2.5mm

paint consumption：2-3kg/m

Paint tank capacity：60kg*2

Marking shoe：Pneumatic opening and closing，Hydraulic mixing

Double glass beads dispenser：manual synchronizing clutch dispense，capacity：25kg*2

Beads consumption：500-600g/m

Rubber tire：iron wheel，Heat resistant rubber tailor-made，The rear tail wheel is provided with a locator，keep the machine moving in a straight line

Line width：optional 150/200/300/400/450mm（customizable）

size：length1300mm*width1000mm*height1170mm（not include pointer）

Net weight：296KG

Engine Honda gasoline engine，air-cooled engine Power:5.5HP
Driving method Automatic oil pressure stepless transmission
Working speed 10-15m/min
Maximum Gradeability 15°
Line thickness Flat line：0-3.5mm rib line： height:6.5mm（0-10mm adjustable）
Bump length can be adjusted by CPU intelligent control program
Marking shoe pneumatic open and close,pneumatic moulding
Paint tank capacity 60kg*2
Double glass beads dispenser Automatic synchronous clutch broadcast capacity:25kg*2
Rubber tire iron wheels，Heat-resisting rubber，The rear tail wheel is equipped with a positioner

，to make it move in a straight line
Line width 150/200/300/400/450mm（optional）
Size 1300*1000*1170mm
Weight 296kg
Main Configuration：① travel driving unit-USA② Solenoid valve-Italy

③ Air compressor-Taiwan④ modulator-Germany⑤ Air cylinder-Italy

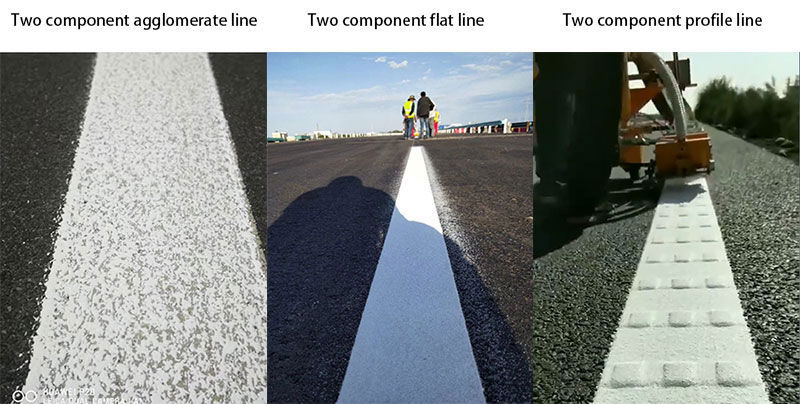

Pictures of this Buy Two Component Agglomerate Line Marking Machine

Our Pictures of this Two Component Agglomerate Line Marking Machine Factory

Looking forward to your inquiry for this Two Component Agglomerate Line Marking Machine Manufacturer
