Specification of this High Pressure Water Blasting Road Marking Removal Manufacturer With Suction System

Advantage one:imported suction system

LXD90-3B high pressure water blasting road marking removal adopt suction system imported form Germany,equipped with Jestream type high pressure pump imported form America.

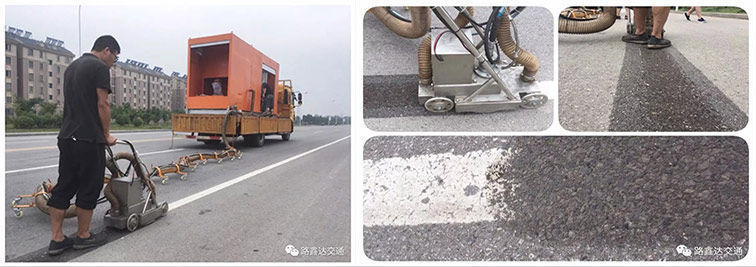

It can remove road marking without damaging the road surface, and the waste water and residue can be suctioned into waste water tank, The waste water tank can accommodate about 700kg waste water(other capacity on request). New designed vehicle,equipped with more nozzle,can be jetting form different angles, to clean up road marking without damaging the road surface.

Advantage two:Automatic separation system

Residual and waste water can be suctioned into vacuum chamber,

what’s more,the residue can be separated from the waste water automatically,residue can be placed into plastic woven bag, which can be putted in the nearby Dustbin .

The waste water will be flowed into waste water tank,when the waste water tank are full, just discharge them into sewer through water pipe. Very convenient ,very safety, and very friendly to the environment!

Even in the city road,there’s no need to block the road.

Advantage three:uninterrupted efficient operation

The machine can work continuously,its work efficiency can over about 8m/min to 10m/min,

working and recycling can be done at the same time, no need to stop the machine.

Really meet the requirement of high efficient and environment protection.

，Flow：35L/minbearing:Japan NSK，Plunger:hard alloy Φ20;High pressure seal:imported sealRemove speed8-10m/minRemove width150-250mmSuction systemGerman TechnologyOpen-type non-pressure tank

,can remove solid waste under constructionSuction pressure-0.4booster pumpMax. 6KGwater supply pipestainless steel and Withhold hoseWater supply protection systemWith Low pressure protection device for water supplyFilterDouble layer stainless steel vertical type FilterComputer monitor instrument boxTotal Computer monitorFresh water/waste water tank capacity6000KG/700KG（capacity can be customized）Machine size5×2.2×2.3mMachine weight(empty weight)5000KG
