LXD260C Automatic Truck Mounted Ultrahigh Pressure Water Jetting Paint/Rubber Removal

Update time:Oct-27-2020

Short Description:

We are China's largest professional manufacturer and factory of the Road Marking Paint Removal/Rubber Removal. Truck required, For example: Jac truck,K5L cab,Engine:Yuchai ,YC4S160-50,Gearbox:fast-gear, 6DS60T,front axle: 3.5T, rear axle: 8T, crossbeam:230*75*6,tire: 10R22.5, vacuum tire。carriage dimension: 6800*2450*600,gross mass: 16T,load capacity: 9.8T


3 Levels of Thermo to ft your budget

Specification of this Automatic Truck Mounted Ultrahigh Pressure Water Jetting Paint/Rubber Removal Manufacturer

Standard data parameters list

General key component

(1) Front bracket module(1)

(2) Luxinda customized spray disc(3)

(3) Luxinda special nozzle(2)

(4)Truck required, For example: Jac truck,K5L cab,Engine:Yuchai ,YC4S160-50,Gearbox:fast-gear, 6DS60T,front axle: 3.5T,  rear axle: 8T, crossbeam:230*75*6,tire: 10R22.5, vacuum tire。carriage dimension: 6800*2450*600,gross mass: 16T,load capacity: 9.8T

(5) Installation and truck upgrade

(6) drive unit for moving(reduction gear)

(7) Installation and separation of fresh and waste water

(8) Computerized speed/pressure synchronization

(9) Starter kits wear out parts/tools

Alternatives*

(1) omnirange

(2) monitoring system

(3) Handover, maintenance and operation training

(4) 250h Spare parts package (theoretically)

Road application

(5) Improvements in asphalt and concrete

(6) Clear road markings (hot melt, cold paint, two-component)

(7) Remove the oil stain on the road surface

(8) Remove Zebra crossing

Application at the airport

o Remove rubber and paint

o Oil cleaning

o AGL(Aerodrome Ground Lighting) cleaning

o The platform cleaning

Technical parameters

Max. pressure: 2800Bar (40Kpsi);

Working pressure: 2500Bar (36Kpsi)

Max. Flow: 39L/MIN; Pump can be changed when used to remove airport rubber (optional)

Ultrahigh pressure pump: import pump domestic assembly

Pump speed: 1500-2000 cycles per minute

Driving mode: direct drive

Diesel engine power: 225kw

Booster pump: the maximum 6KG booster pump

Filter: double stainless steel vertical filter two – stage filtration

Suction system:SSA vacuum pump,pressure: -0.4bar

Water tank:waste water tank:700kg(customizable),fresh water tank:6000kg(customizable)

Maximum elongation:1.3m

Total weight: 7000KG;

Machine size : 10m×2.5m×3.54m;

Apperance:Yellow(customizable)

Pictures of this Buy Automatic Truck Mounted Ultrahigh Pressure Water Jetting Paint/Rubber Removal

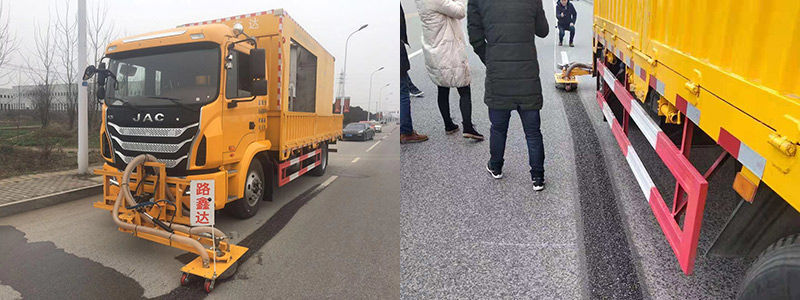

ultrahigh pressure water jetting system, installed on the truck

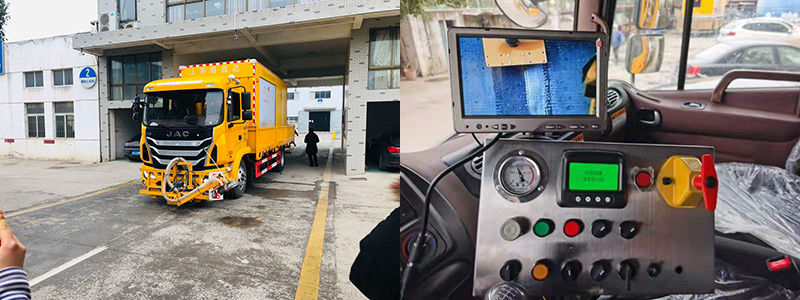

Our Pictures of this Automatic Truck Mounted Ultrahigh Pressure Water Jetting Paint/Rubber Removal Factory

Looking forward to your inquiry for this Automatic Truck Mounted Ultrahigh Pressure Water Jetting Paint/Rubber Removal Manufacturer
