LXD1200/800 Hydraulic Double Cylinder Thermoplastic Preheater

Update time：Oct-27-2020

LXD1200/800 Hydraulic Double Cylinder Thermoplastic Preheater Featured Image

Short Description:

We are China’s largest professional manufacturer and factory of the LXD1200/800 hydraulic double cylinder thermoplastic preheater. Multipath integration hydraulic transmission and infinitely variable speeds design which can generate powerful torque, to ensure that the machine can operate smoothly under heavy load.


video

3 Levels of Thermo to ft your budget

Specification of this Hydraulic Double Cylinder Thermoplastic Preheater Manufacturer



Specification
Hydraulic double cylinder thermoplastic preheater is one of the primary equipment of road marking construction.Multipath integration hydraulic transmission and infinitely variable speeds design which can generate powerful torque,to ensure that the machine can operate smoothly under heavy load.also it can stir forward and reverse.

It equipped with stainless steel energy-efficient burner with the advantages of high efficiency,

save time and energy,easy operation and simple maintenance.
Engine 15PS electric strat water-cooled diesel engine (LXD1200B: 16PS electric start air-cooled diesel engine)
Stirring system Hydraulic stirring system with protective device, can stir clockwise or anti-clockwise.
hydraulic motor Flow Rate 5.0L/min
Paint tank capacity 600KG×2（LXD800: 400KG×2）
Paint tank Made of boiler iron(LXD1200B: Made of special stainless steel )
Heating mode LPG(gas tank suggest 50KG) ,Direct injection energy-efficient burner
Hydraulic oil tank 70L
Thermometer Each container is equipped with thermometer with heating resistance and shock resistance.
Operation Control The manual dual control valves respectively control two stirrers in the two cylinders.
Heat preservation Double layer heat insulating material is fixed between inner container and outer layer
Ventilating exhaust system Suction-type chimneys at the top of cylinder
Discharge Outlet Lockable discharge trough and the close inter meshing type discharge system.
Structure Frame structure,Integrative welded structure with high stength,heating resistance and oxidation resistance.
Heating temperature 0~300℃
Size and Weight 1700×1600×1700mm 900KG （LXD800: 1680×1400×1550mm 800KG ）

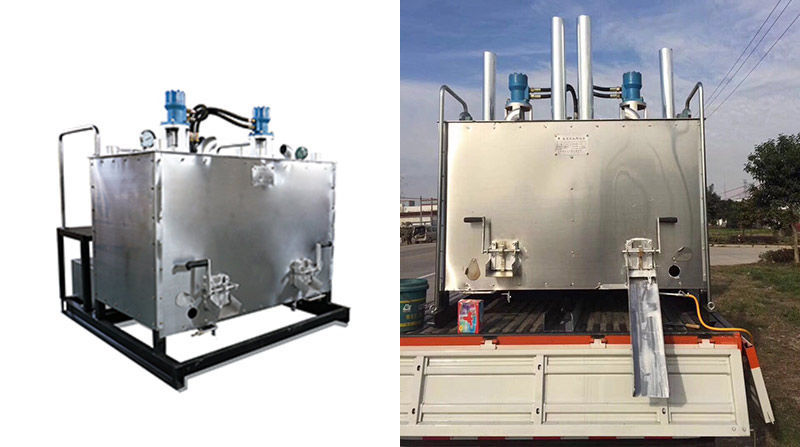

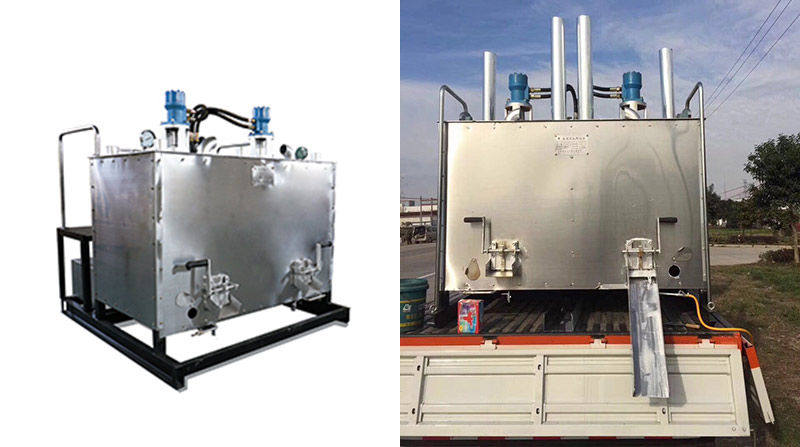

Pictures of this China Hydraulic Double Cylinder Thermoplastic Preheater

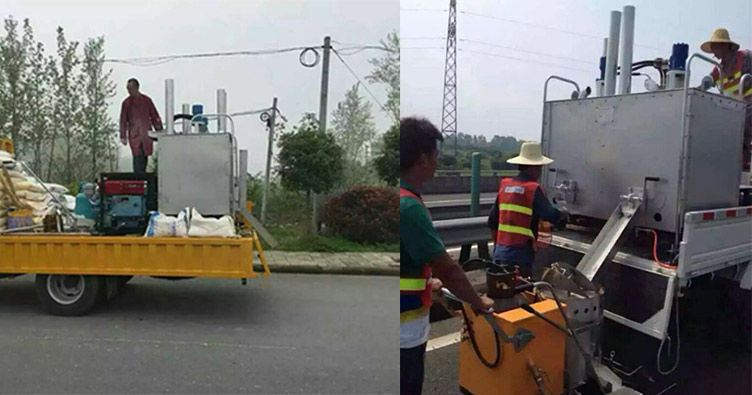

Our Pictures of this Hydraulic Double Cylinder Thermoplastic Preheater Factory

Looking forward to your inquiry for this Hydraulic Double Cylinder Thermoplastic Preheater Manufacturer
