LXD 18L-2 Truck Mounted Double Cylinder Double Pump Cold Paint Road Marking Machine

Update time:Oct-27-2020

Short Description:

We are China ’s largest professional manufacturer and factory of truck mounted double cylinder double pump cold paint road marking machines. It is designed for large-scale road,especially apply to city road,airport and express way etc.It can mark actual line,dotted line,double yellow line etc.It is equipped with double spray gun and double paint bucket,also can add additional manual spray gun, to make it mark lines in different color at the same time.


3 Levels of Thermo to ft your budget

Specification of this Truck Mounted Double Cylinder Double Pump Cold Paint Road Marking Machine Manufacturer



Specification
It is designed for large-scale road,especially apply to city road,airport and express way etc.

It can mark actual line,dotted line,double yellow line etc.

It is equipped with double spray gun and double paint bucket,also can add additional manual spray gun,

to make it mark lines in different color at the same time.

Maximum flow 18L×2
Maximum work pressure 30Mpa
Spraying width 50-900mm
Spraying thickness 0.2-0.6mm
Work performance Four spray guns can work together
Dimension 1530×1230×1380mm
Net weight 820kg



Main engine configuration Truck loading configuration
270 Honda engine Automatic break line machine (SIMENS)
Gear pump Manual controller (SIMENS)
Oil tank Shelf of the spray gun (one group)
Pressure regulator two solenoid valves (COMAZZI)
Accumulator two automatic spray gun
Reverser four pieces of high pressure tube(3.5m)
Reversing oil tank Rotary encoder(OMRON)
Paint high pressure pump 10m High pressure tube,one manual spray gun
Strainer One Yellow Paint bucket and one white Paint bucket
Air compressor One set of Water line shelf

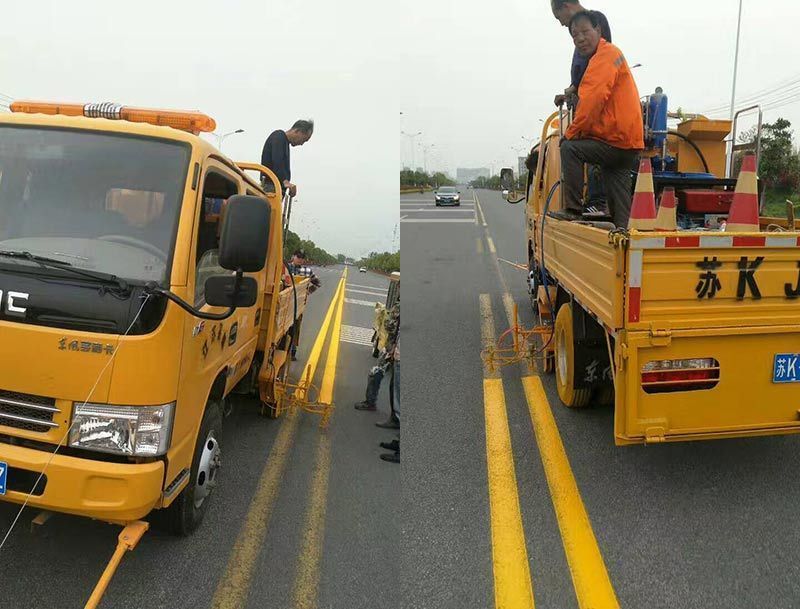

Pictures of this China Truck Mounted Double Cylinder Double Pump Cold Paint Road Marking Machine

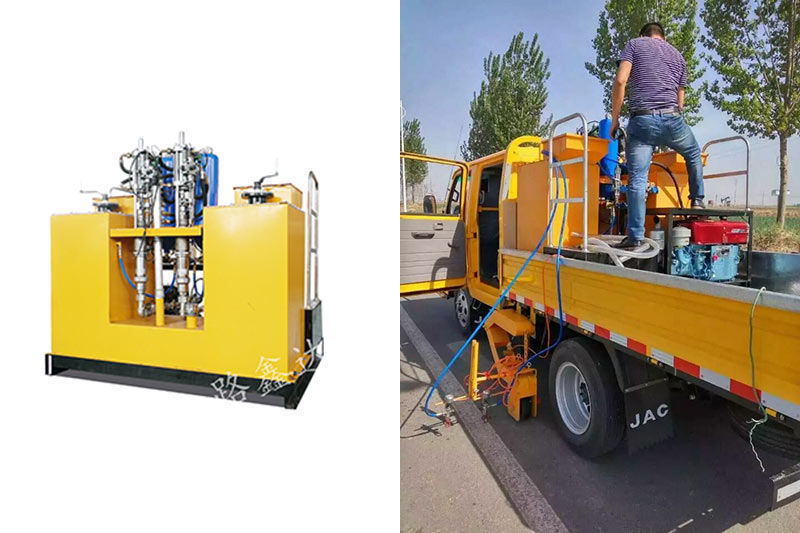

Our Pictures of this Truck Mounted Double Cylinder Double Pump Cold Paint Road Marking Machine Factory

Looking forward to your inquiry for this Truck Mounted Double Cylinder Double Pump Cold Paint Road Marking Machine Manufacturer
