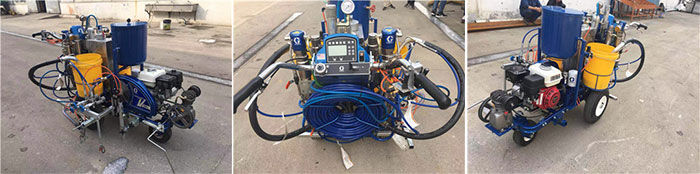

200HS Cold Plastic Spray Machine(MMA 1:1)mixed Inside
Update time:Oct-27-2020
3 Levels of Thermo to ft your budget
Features:
① advanced shock mitigation system
② lightweight fixed device of nozzle
③ imported nozzle
④ continuous cooling system
⑤ A component B component Static mixing device
⑥ Automatic quick cleaning device
Main Configuration:
① Honda gasoline engine
② Germany imported high pressure plunger pump(cleaning device)
③ Graco Hydraulic pump(A component pump,B component pump)double pump
Technical Parameter:
1、Engine Power:6.5PS Honda gasoline engine
2、Glass beads broadcast system:Pneumatic
3、A component capacity:25KG,B component capacity:25KG, Cleaning materials tank capacity:25KG
Glass beads tank capacity:20L(27kg), hydraulic oil tank capacity:3.6L
4、Line width:15-20cm(graco nozzle)40cm zebra crossing(graco nozzle)
Or domestic nozzle(the size can be adjustable)
5、Max.working pressure:(A component)America imported high-pressure pump 3300PSI
(B component)America imported high-pressure pump 3300PSI
(cleaning device)Germany imported high-pressure pump 3300PSI
6、Max. Flow:8.4 × 2 L/min
7、Working speed:1.5-3km/H
8、Line thickness:1mm(adjustable) 1kg/m²
9、Machine size and weight:1730*1120*1170mm ,258kg
