200Bar&48L high pressure water jetting road marking removal with suction system

Update time：Nov-19-2024

200Bar&48L high pressure water jetting road marking removal with suction system Featured Image

Short Description:

2000Bar&48L High pressure water jetting road marking cleaning&removing machine


video

3 Levels of Thermo to ft your budget

Technical Data

Diesel engine Cummins six-cylinder diesel engine
Power 154KW，RPM：2100r/min
High pressure Pump Pressure：200mpa，Flow：48L/min，Pump speed: 530 times per minute

bearing:Japan NSK;，Plunger:hard alloy Φ20;

High pressure seal:imported seal
Remove width 150-250mm（standard configuration:220mm）
Suction system German TechnologyOpen-type non-pressure tank,can remove solid waste under construction
Suction pressure -0.4BAR
booster pump Max. 6KG
water supply pipe stainless steel and Withhold hose
Water supply protection system With Low pressure protection device for water supply
Filter Double layer stainless steel vertical type Filter
Computer monitor instrument box Total Computer monitor
Fresh water/waste water tank capacity 2500KG/3000KG（capacity can be customized）
Machine size 4.1×2×2m
Machine weight(empty weight) 5000KG

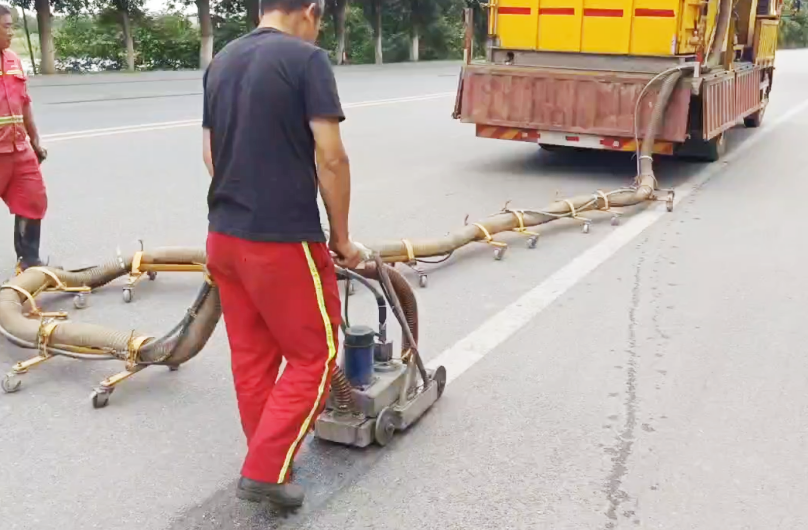

Road marking paint removing

001

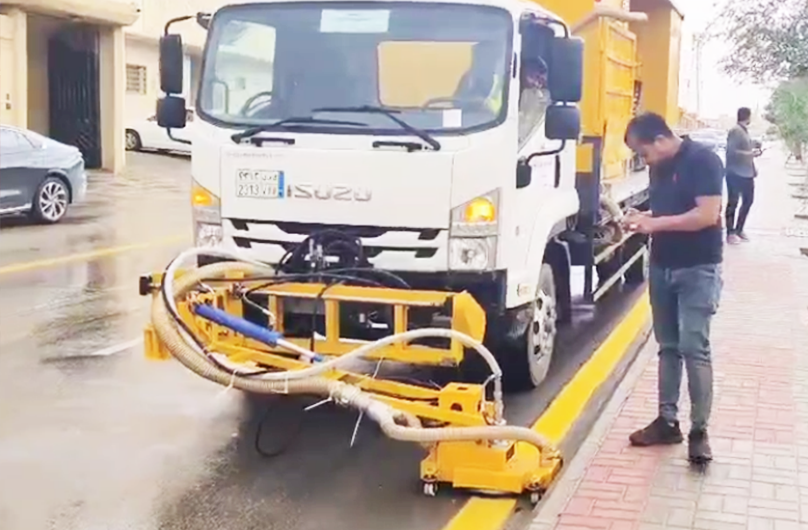

Road marking paint cleaning

002
